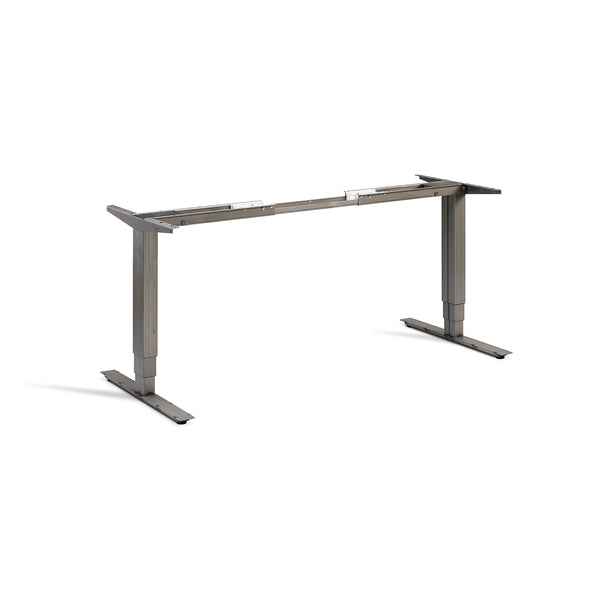

Hades Electric Frame
The Hades is a robust dual motor desk, made from high grade steel. The framework is finished with a clear matt lacquer, leaving visible weld seams, heat marks and burnishing.
The Hades has two solid motors, powered by Logic Data electronics, giving a reined, low noise operation and rapid operation of 40mm/s. The frame and all electronics are covered by a 7 year guarantee. It also features a telescopic central beam system, allowing it to be fitting with desktops from 1200 to 1800mm in width.
This is for the frame only.
| Key Features |
|
| Type | Motorised |
| Motors | Dual |
| Height Range | 625-1285mm |
| Load Capacity | 120kg |
| Frame Width Adjustment | 1150-1740mm |
| Foot Depth |
690mm |
| Side Supports Depth |
540mm |
| Speed | 40mm/s |
| Memory Control? | Bought separate |
| Frame Weight | 29kg |
| Thermal Protection? | Yes |
| Anti-Collision? | Basic |
| Overload Protection? | Yes |
| Package and Building | |
| Frame Packaging | Size - 840 x 380 x 120mm Weight - 31kg Quantity - 1 |
| Build Time | 20-30 mins |
| Suitable for self build? | Yes |
| Other | |
| Voltage |
230V AC Input, 24V DC operation |
| Noise Level | <42 dB |
| Max Operational Power | 300W |
| Standby Power | <0.3W |
| Duty Cycle | 10% - 2mins on, 18mins off |
| Operational Life | 10,000 cycles at full rated load |
| Compliance | CE conformity Machine Directive 2006/42/EC EMC Directive 2014/30EU Low Voltage Directive 2014/35/EC REACH, WEEE and RoHS 3 2015/863 EN 527-2011 Type A, EN 527-2:2016 ISO 21016 |
